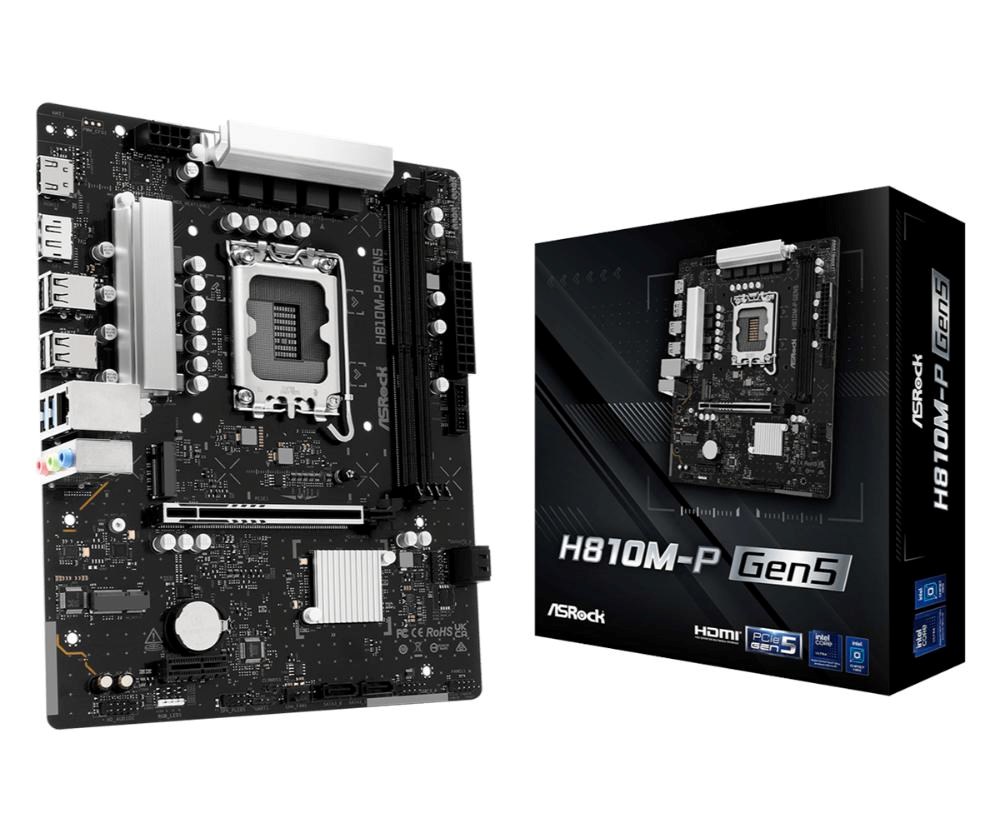

ASRock MB Sc LGA1851 H810M- P Gen5, Intel H810, 2xDDR5, 1xDP, 1xHDMI, mATX

Unique Feature

Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
- ASRock Auto Driver Installer

CPU

- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel Thermal Velocity Boost (TVB)
- Supports Intel Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration

Chipset

- Intel H810

Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Expansion Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 3.0x*
*Please refer to Memory Support List on ASRock's website for more information.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H

Expansion Slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks

*

Storage

Chipset:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Internal I/O Connectorss*Supports NVMe SSD as boot disks

USB

Chipset:
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
*All USB ports support ESD Protection

Internal I/O Connectors

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x Chassis Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Internal I/O Connectors
- 1 x 8 pin 12V Power Internal I/O Connectors
- 1 x Front Panel Audio Internal I/O Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CHA_FAN1 supports the fan power up to 3A (36W).
CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

Back Panel I/O Ports

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm

OS

- Microsoft Windows 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
